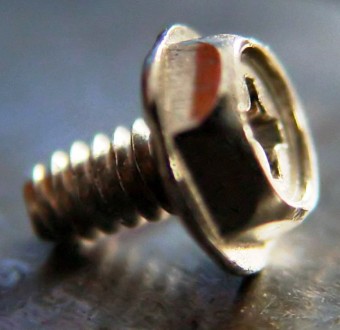

Today I found out twelve ways to remove a stripped screw. We’ve all been there; trying to void a warranty or otherwise take something apart and you go to take that one last screw off and invariably it strips. Now what? You can either A: Think Hammer… really, really big hammer; or B: Read the list below and pick the method that seems easiest to you on how to remove a stripped screw or bolt.
- Have a Dremel or equivalent tool? Use the Dremel to cut a notch in the screw head. Now take a flat-head screw driver and try and unscrew it using the notch you created.
- If you happen to have a drill and some drill bits handy, drill a small hole in the center of the screw. No need to drill too deep. The idea here is just to drill a small hole to allow your Phillips (cross head) screw driver to seat deeper in the hole to help it catch better when you turn it.
- If you happen to have an “easy-out” screw extractor, this is by far the easiest method. Works pretty much every time and with very little effort. They aren’t that expensive and will save you loads of time messing with stripped screws in the future.
- Use JB Weld or equivalently super strong “welding” adhesive to attach a nut to the screw head. Pick a nut that is about the same size as the screw head or at the least such that the diameter of the hole in the middle of the nut is smaller than the diameter of the hole in the screw. Now place the nut centered on top of the screw. Fill the hole with JB weld, being careful to not let it run everywhere. If the nut is flush on the screw, this shouldn’t be a problem. If it can’t be flush, use some sort of quick drying temporary gasket or the like to seal around the edges so that the JB weld doesn’t get everywhere, but rather just stays in the hole. Now let it dry the recommended time. Once it has hardened up, use a socket wrench on the attached nut to remove the screw.
Got a sufficiently wide rubber-band handy? Place it on top of the screw head then try to unscrew the screw slowly pushing really hard. Sometimes the rubber will give you the extra grip needed to get that screw out.- If you are handy at welding and don’t want to wait for the JB Weld to harden, take a nut and place it on the screw then weld the nut to the screw by welding along the inner part of the nut. Now simply remove as in #5 with a socket wrench.
- If you’ve gotten the screw partially up and the head is exposed, get a pair of needle-nose clamping pliers or at the least try a pair of non-clamping needle-nose pliers. Many a time my trusty needle-nose clamping pliers have got me out of a “stripped screw” situation.
- A slightly more risky method is to carefully drill the head off the screw. Try not to drill deeply, you just want to take the head off enough to be able to remove whatever piece you are trying to remove. Once the head is off and the piece is removed, enough of the shaft of the screw should be exposed (assuming you didn’t drill it too deep); now use needle-nose pliers to get the shaft of the screw out.
- One of the simplest things to do is if it is a Phillips (cross head) screw, take an appropriately sized flat-head screw driver and, pushing as hard as you can, attempt to remove the screw this way. Often there is plenty of grip available for a flat-head screw driver of the right size in a stripped cross-head screw. If this doesn’t work, combine this method with the rubber band method in step 1.
- Another simple method is to use a Phillips screw driver that is slightly too big for the hole. Push down hard and tilt the Phillips at a slight angle and turn. For a minorly stripped screw, this often works.
- Depending on how fragile the thing you are working on is, you can also try taking a hammer and tapping your screw driver into the screw. If the metal was soft enough to strip in the first place, you will often be able to hammer the screwdriver into the screw head enough to give it a firm position for unscrewing. Obviously this method is no good if what you are working on is fragile.
- If you’ve gotten here and none of the above has worked, it may be time to get out your trusty old over-sized hammer and simply kill the screw… Kill it dead. Collateral damage to the thing you are working on be damned!
Expand for References:
<div class=”ad-right”><!– wp_ad_camp_1 –></div>
 |
 |
 |
one can purchase a “left twist drill bit” which very often will, when drilling out the screw cause the screw to come out before you need the extractor
There’s a tool called an impact driver. It works best if you use it before you strip the screw but the down-force of the hammer blow happens at exactly the same time as the driver tries to turn and often the combined shock moves a reluctant screw.
Just want to say your step #1 is awesome – worked for me the first time. thanks!!
After trying several methods, no. 12 worked just fine. As an added bonus, I got to learn how to repair sheetrock.
Hey guys I just want to let you know that the rubber band did not help with my totally stripped out tiny iphone screws. I’ve also tried JBWELD glue Eproxy. But let me back up, my first helpless trial was indeed rubber band, why not its free lying around the house. Second I tried my drill bits since I though it would be the same as drumel? Not good, got the gut to hammer it with screw driver, nope not working. So I went to Acehardware store know some of the ideas will not work, I’d ended up buying just about $40 worth. This include Screw Extractor, JBWELD glue, finally Drumel. I tried all three in this order and guess what, drumel works!! Thanks, I should have tried it first but oh well, now I know….
Your step 5 with the rubber band worked perfect, thank you!
…and the next 12 ideas are…?
Here’s one that just worked for me. Take wire cutters and use them to put grooves in the side of the head. Keep the wire cutters in the grooves and turn enough to unstick the screw.
The welding idea is not the best option for removing studs and screws unless you remove any coatings the metal may have on it (I.E. zinc, nickel etc). If you don’t remove these metals they will contaminate your weld.
Also, welding changed the temper of the metal. usually this will make the metal around the weld softer and decreasing its tensile strength. The metal needs to be heat treated to give it a high tensile strength.
I recommend Dremeling.
I read this great article and use a combo of the concepts. I filed the round head flat on two sides and used a small socket over the screwhead to remove the screw.
Ref #5: I did happen to have a sufficiently wide rubber-band that I had just removed from a bunch of asparagus. It worked beautifully with the first turn. I will keep the rest of the 12 steps in mind in case I run into one a screw that is not so giving. Thanks
Dremel with flat-head works every time!
I love the last step…tried it out too
and while my computer now lay in pieces at my feet, pieces of hardware dangling from my hammer, I have to say…it was worth it!
Oh yes, VERY worth it. **lights a cigarette while glaring at the tortured remains**”stupid screw”
Sadly, the screw is the only thing left intact :’(
i’m replacing the screen on my iphone 4s, when i went to take it apart, i stripped 2 screw heads and can’t get them out at all. Any ideas on how to remove those screws? FYI: these are super small screws. and access with a dremel tool on one of them is impossible.
Tip #5 was great! Worked like a charm! Thanks!
The round rubber grips that are intended to help you open jars would be a great stand-in for the extra-wide rubber band.
@Jen: Great tip!
I used these (Japanese!) pliers with jaws that can removed stripped/siezed screws….
http://www.precisionhandtools.co.uk/Pliers/Engineer-PZ-58-Neji-Saurus-GT-Multi-Purpose-pliers-with-screw-removal-jaws
…they work surprisingly well.
I am blown away by the rubber band trick. Common supplies and super easy. Thank you!!!!
Thanks for all the helpful advice. I tried the rubber band and a few of the other suggestions. Eventually I used a flat screwdriver and a hammer to knock the cupboard door off the hinge. I was able to attack a vice grip to the screw head and twist it off.
I should have said twist it out, the head did not come off.
Rubberband, man! Now to figure out how to get the fan in my ceiling fan working again. I’m going to see if the black wire came loose. I can bring home the bacaon!!!
I was just getting ready to “borrow” a wrecking ball from the city’s lot –then voluntarily admit myself into a psychiatric facility for sedation.
The bored, apparently annoyed, young man at the closest “hardware emporium” said
“You’re going to have to get an entire new sink system and kitchen cabinets, ma’am. There is nothing you can do to get that out.”
Not being a member of the throw-it-out-and-get-a-new-one elite…I was prepared to spend the rest of my life proving the apparently annoyed worker that I do not have to live without a kitchen sink over one SCREW.
Number two. Took less than a minute.
THANK YOU!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
And I REALLY appreciate the “we’ve all been there” comment.
I am not foolish, reckless, nor inept. I stripped a screw.
It is not a “Flat head”! The correct name for that kind of screwdriver is “Slot” reffering to the slot in the head of the screw for which it was designed.
Yeah, thanks Captain Semantics.
Lot’s of people call them “flat head” as well, but if you’re going to be correcting people about the name of something, you should probably get it right yourself to avoid looking like a total moron.
It is not a “Slot”! The correct name for that kind of screwdriver is “SLOTTED.” Moron.
To the author: The rubber band trick worked like a charm. Never would’ve thought of that one. Thanks.
A little bit of valve grinding compound, which you can buy in most auto parts stores, works wonders when applied to the head of the screw or tip of the Philips. You’ll be surprised how well it works. A must-have for any toolbox.
The time: about 40 years ago. The place: under a 1964 Pontiac Catalina, trying to loosen a rusted exhaust pipe bolt from the exhaust manifold. I had up rounded off the head of the bolt with the ratchet (I probably used a 12-point socket instead of a 6-point) and thought I’d try an “E-Z Out,” which is like a left-handed drill bit. I tried drilling a hole in the head of the bolt to screw in the E-Z Out but it was too strong for the drill bit; I couldn’t drill a deep enough hole. I tried penetrating oil, heat, hammering, and drilling. I finally put a pair of 10″ Vise Grips on the bolt head, sticking straight out from the bolt parallel to its shank, then used a smaller pair of Vise Grips to tighten the knob on the larger pair. I was able to put a large wrench on the jaw of the Vise Grips and, bewteen the vibration of more hammering and drilling, and more heating and penetrating oil, I finally got the bolt to move. Using the smaller Vise Grips to tighten the knob on the larger pair was the secret: before I tried that I couldn’t get the larger pair tight enough to stay on the bolt when I put the wrench on them. I carried that bolt in my pocket for many years to remind me that just about anything can be overcome if you put your mind to it!
Of all the 12 ways,none said which direction.clockwise or counter clockwise to turn to get a screw out.
Well, I’m still at it. I’ve tried all of these tips that were applicable to me save welding (no experience there.) Went out and bought a set of screw extractors as well as some JB Weld. Had my last hopes pinned on the JB Weld, but after waiting a full day for it to cure, today the bolt twisted right off the top of the ($#@!-ing) screw instead of loosening it. (And believe me, I prepped it well–cleaning, sanding, degreasing and drying before adding the JB Weld.) The screw I’m trying to remove is flat, countersunk…in the top of my bathtub drain stopper. The whole setup’s very old (probably the original from ’50s.) Looks nothing like anything I’ve seen on YouTube or anywhere else on the web. I decided to forget the screw & just cut the stopper off, but can’t do that with my Dremel, as there isn’t enough clearance underneath to reach the metal piece it’s attached to. Tomorrow I might try cutting the edges off in small pieces…hope my Dremel can keep up with all that cutting! But back to the subject matter: your tips are very good & useful…they’ll come in handy for future projects. I guess I just have the most stubborn drain screw in the world!
Hi Gianna, I have only stumbled upon this site today so you have probably got the screw out by now. You could have tried spraying it with Q20 and leaving it to soak in. Sounds like this screw could be rusted hence the difficulty. Once the Q20 has penetrated beneath the surface you could try tapping it to loosen it and then remove it.
Instead of needle nose pliers, I use a small wire cutter. It was sharp enough to cut into the screw head and give me a good grip as I turned the screw loose.
Apparently you think that there is only ONE kind of situation that is referred to as a “stripped screw”.
Actually, what you are talking about is a “stripped screw HEAD”; there is also the situation of a “stripped screw THREAD”.
The stripped thread almost always happens only when a machine screw is used. You turn the screw, the thread strips. It will turn forever now, but since the thread is not gripping, it won’t come out.
A “machine screw” is of even thickness for the whole length of the shaft, has evenly spaced thread, and screws into a threaded metal nut or hole. Either the screw can strip; or the nut/hole can strip; or both.
I’d like to see some suggestions f or handling this kind of “stripped screw”.
PS
A flathead screw need not be a slotted screw; neither does a slotted screw need to be a flathead – it can be round-headed, or even bolt-headed.
Hi Scribblerlarry, you can put a piece of prestik on the tip of the screwdriver and then gently turn and pull back gently while turning the screw and this should assist in getting the screw out. Another method is use quick setting glue and apply to tip of screw driver and insert into screw and hold in place while it sets. Then remove same as prestik method. Spot weleding the screwdriver onto head will also work but might be a bot more messy.
